Thermal-Shrink Packaging Machine

Place of Origin: -
Brand:
Model/Product ID: BSD350, BSD4020A+FQL450A, BSE4530, FQL380+BS400
InterMachinery(Thailand)Co.,Ltd.
Phone:   +66 2 451 6366-7
Fax:   +66 2 451 6368
Mobile:   +66 81 672 1913
Model: BSD350, BSD4020A+FQL450A, BSE4530, FQL380+BS400

Thermal-Shrink Packaging Machine

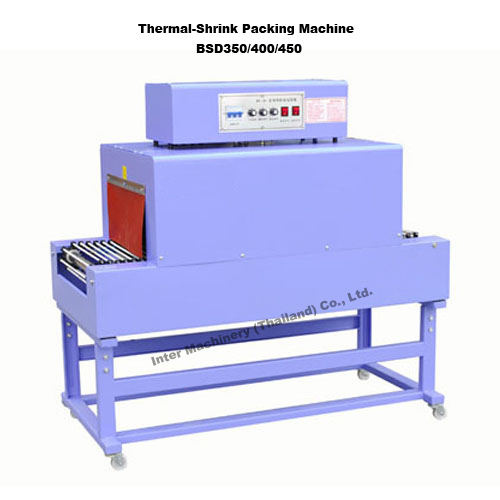

Thermal-Shrink Packaging Machine
Model: BSD350

Power supply: 220-240V/50Hz
Heater power: 6.5 KW Adjustable
Converyor speed: 0-10 m/min.
Tunnel size: 75x35x15 cm.
Shrink product size: 300x150 mm.
Conveyor loading: 5 kg.
Maximum Tunnel temperature: 200℃ Maximum.
Machine size: 105x55x110 cm.
Machine weight: 75 kg.

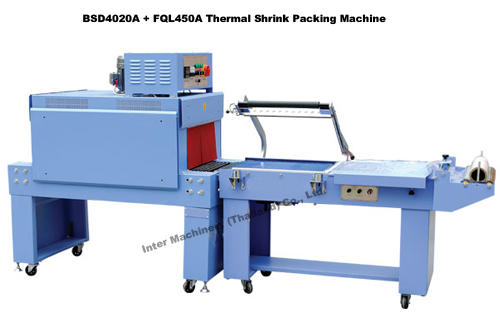

Thermal-Shrink Packaging Machine

Model: BSD4020A+FQL450A

Power supply: 110,220-240V/50-60Hz 1∮
Heater power: 6.5 KW Adjustable
Converyor speed: 0-15 m/min.
Tunnel size: 100x40x20 cm.
Shrink product size: 350x160 mm.
Conveyor loading: 25 kg.
Maximum Machine size: 120x60x115 cm.
Machine weight: 90 kg.
Shrink film: POF,PVC,PP

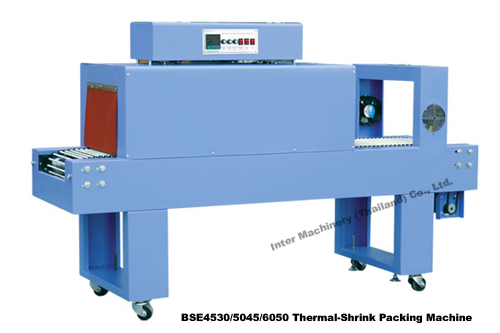

Thermal-Shrink Packaging Machine
Model: BSE4530

Power supply: 3 Phase 220V,380-460V/50-60Hz
Heater power: 20 KW Adjustable
Converyor speed: 0-10 m/min.
Tunnel size: 120x45x30 cm.
Shrink product size: 260x200 mm.
Conveyor loading: 15 kg.
Maximum Machine size: 215x69x140 cm.
Machine weight: 200 kg.
Shrink film: PE,POF,PVC,PP

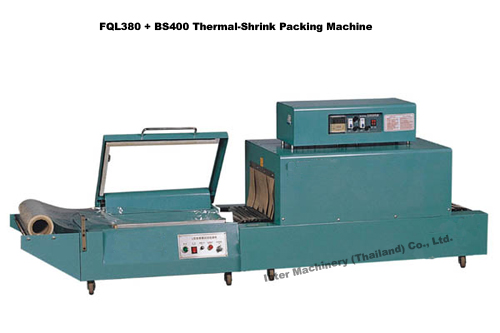

Thermal-Shrink Packaging Machine

Model: FQL380+BS400

Features: Compact construction. High efficiency. The use of intra-red.
Quartz heater tube results in lower the power consumption. Great air-flow
provides excellent heat distribution for an even shrink. Temperature meter
control temperature; Automatic Temperature Control: The system features
automatic temperature variation for convenient operation. Variable speed
live-roller(mesh) conveyor is easily adjusted.
