Horizontal wrapping machine KD450

Category: Manufacturing machinery

Place of Origin: Thailand
Brand:
Model/Product ID: KD450

InterMachinery(Thailand)Co.,Ltd.
Phone: +66 2 451 6366-7
Fax: +66 2 451 6368
Mobile: +66 81 672 1913

Model: KD450

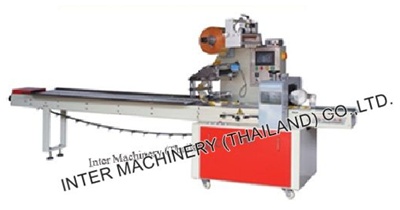

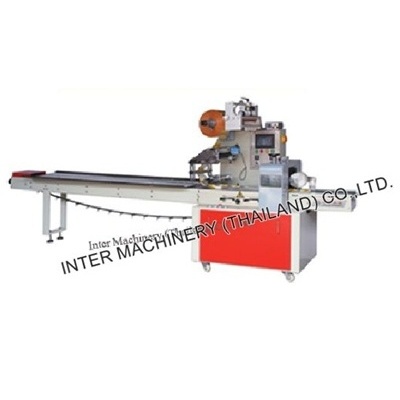

Horizontal wrapping machine KD450

KD-450 Automatic packaging machine

Specifications

CKD-450 Automatic Pillow-type Packaging Machine:ompact structure, stable function and simple operation.

Double frequency conver

KD-450 Automatic pillow-type Packaging Machine

It adopts imported electric appliance, touch manmachine interface, convenient parameter setting.

Self-cheching function, trouble can be read easily. High sensor photoelectric color chart tracking, make the cutting position more correctly.

Dependant temperature PID controlling suitable for various materials of packagingmenbrane.Position stop function, no adhesive and no waste of membrane.

Clean rotation system, more reliableoperation and more convenient maintenance.

All the controlling operates by the software,convenience for function ad-justment and technical up grading.

Model	KD-450	รุ่น	KD-450
Size of bag(mm)L	65-330mm	ขนาดซอง(ยาว)	65-330mm
Size of bag(mm)w	25-180mm	ขนาดซอง(กว้าง)	25-180mm
Size of bag(mm)H	5-70mm	ขนาดซอง(สูง)	5-70mm
Intensity of Sealing	≥15	แรงกดในการซีล	≥15
Capait(packa/min)	50-120p/min	ความเร็วแพ๊ค ชิ้น/นาที	50-120p/min
Total Power(kw)	3.7Kw220v	กำลังไฟ	3.7Kw220v
Overall weight(kg)	680kg	น้ำหนักตัวเครื่อง	680kg
Dimension(LxWxH)(mm)	2200 x900x1500mm	ขนาดตัวเครื่อง	2200 x900x1500mm
