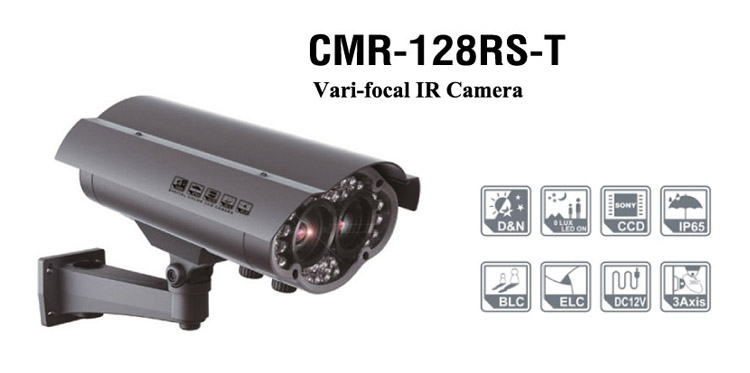

กล้องวงจรปิด CCTV HIP CMR-128RS-T

Features :

- Dual 1/3 “CCD SONY”

- 420TV Lines / 480TV Lines

- Lens(f=2.8~12mm)

- Vari-focal Les

- Olux(IR ON)

Technical Specification :

Model : CMR-128RS-T

Menu control : N

Image Sensor : Dual 1/3"Sony CCD

H.Resolution : 420TV lines / 480TV Lines

Lens : Lens(f=2.8~12mm)

Type lens : Vari-focal Lens

Effective Pixel : PAL:768(H)*494(V),NTSC:752(H)*582(V)

Min. Illumination : 0lux(IR ON)

IR Distance : 60~80 meters

Video Output : 1.0Vp-p Composite Output (75Ω / BNC)

S/N Ratio : ≥52dB

LED Wave length : 42 unit 850nm infrared LED

Working Temperature : -20℃～+50℃

Working Humidity : ≤90%

Power Supply : DC12V(+/-10%), Max.1000mA

Power Consumption : Max.2.4W

Packing Dimension : 280*170*200mm

Gross Weight : 1.86kgs

Accessories : Buil in bracket
