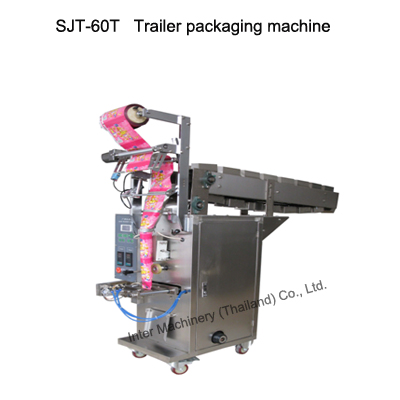

Trailer Packaging Machine

Trailer Packaging Machine

Scope of application: Suits in food, the brittle material, the potato chips, the cooked rice crust, the apple piece, the fruit jelly and so on.

Principal capability and structural features:
1. The Chinese/English/Russian demonstrated that may select the monolithic integrated circuit, programmable PAC or the PLC control system.
2. Stainless steel body, after the parameters (filling amount and length of bag ) are set at the display setting unit, the control system will automatically optimize and match the actions, thus achieving best packaging speed.
3. Reliable and stable dual light source photoelectric check system, assuring complete logo of the packaging bags.
4. Controlled by intelligent temperature controller, automatic measuring, bag making, filling, sealing, lot number printing, cutting and counting. bag making, filling, sealing, marking, cutting and counting.
5. Manual measurement batch feeding. Chain bucket type transportation convenience delivery or many kinds of materials.


Technical specifications: Capacity: 20-60 bag/min Bag size: L 30-200 mm W 25-130 mm Power: 1.2 W Net weight: 200 KG Source voltage: 380V 50Hz 220V 50-60Hz Packing material: paper/pe, pet/al, foil/pe, Nylon pe/, tea-leaf filtering paper & ect. Overall dimensions: 700(L)×750(W)×1750(H)mm.
