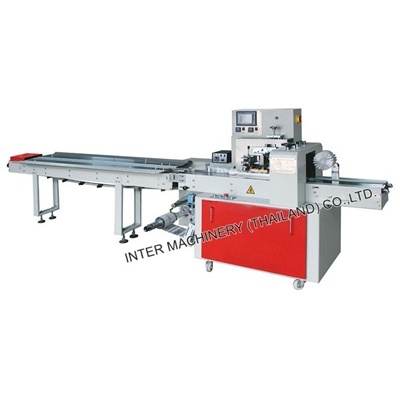

Horizontal wrapping machine KD350

Place of Origin: Thailand
Brand:
Model/Product ID: KD350
InterMachinery(Thailand)Co.,Ltd.
Phone:   +66 2 451 6366-7
Fax:   +66 2 451 6368
Mobile:   +66 81 672 1913
Model: KD350

Horizontal wrapping machine KD350

Specifications

KD-350 Automatic pillow packing machinery
Automatic Pillow Packing Machine

1.It's sasuitable for pharmaceutical industry,

2.large density capsule

3. SS304 made


KD-350 Automatic pillow packing machinery เครื่องบรรจุแนวนอน อัตเตอร์โนมัติ

 Automatic pillow packing machine is suitable for the solid object with regular form. Such as biscuit, bread, sweet, commodities and industrial parts and so on. The bulk cargos is put in a box and form a regular object, then to be packed.

Structure function:

1:Touching controller with person-machine interface, parameter enacted quickly, high speed and high efficiency

2:Adopting the tracing technology through photoelectricity, with digital input and sealing and cutting position nicely.

3:Diagnosing the troublesome and indicating to give an alarm

4:Constant-temperature adjusting, brainpower controlling and being suitable for all kinds of packaging materials.

5:Controlled by Double frequency conversion, the bag length can be cut with the enacting To finish by one step, saving time and saving film.



Specifications:

Model

DK 350

รุ่น

DK 350

Size of bag(mm)L

65-330mm

ขนาดซอง(ยาว)

65-330mm

Size of bag(mm)w

30-150mm

ขนาดซอง(กว้าง)

30-150mm

Size of bag(mm)H

5-40mm

ขนาดซอง(สูง)

5-40mm

Intensity of Sealing

5N/mm²

แรงกดในการซีล

5N/mm²

Capait(packa/min)

40~220Bags/min

ความเร็วแพ๊ค ชิ้น/นาที

40~220 ชิ้น/นาที

Total Power(kw)

220V/50-60Hz,2.7KW

กำลังไฟ

220V/50-60Hz,2.7KW

Overall weight(kg)

680KG

น้ำหนักตัวเครื่อง

680KG

Dimension(LxWxH)(mm)

3780 x 640 x1560mm

ขนาดตัวเครื่อง

3780 x 640 x1560mm
