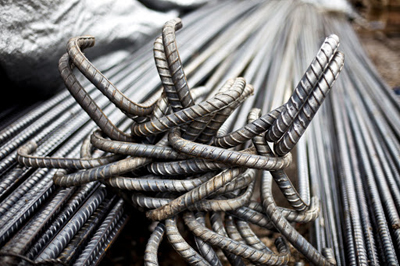

Deformed Bar 20mm. x 12m.

Category: Construction
Mega Metal Trade Co., Ltd.
Phone:   +66 2 385 6066
Fax:   +66 2 759 8638
Mobile:   +66 84 635 6663
Deformed Bar 20mm. x 12m. (Grade: SD40 DB20)

Deformed Bar 20mm. x 12m.

Deformed Bar 20mm. x 12m. = ___ Baht/Unit



List Grade Lenght (m) Weight/Piece (kg)
Deformed Bar 20mm x 12m SD40 DB20 12m 29.59



Designation Designation Diameter (mm.) Cross Section Area (sq.mm.) Unit Weight (kg/m.)
BD 20 20 314.16 2.466



Mechanical Properties

Grade Elongation % Not Less Than Yield Strength MPa (kgf/mm2)  Tensile Strength MPa (kgf/mm2) Cold Bend Test : Angle of Bend (Degree) Cold Bend Test : Diameter of Mandrel
SD 30 17 295 (30) 480 (49) 180 1.5 times of diameter
SD 40 15 390 (40) 560 (57) 180 5 times of diameter
SD 50 13 490 (50) 620 (63) 90 5 times of diameter



Chemical Composition

Grade Chemical Composition No More Than % (by total weight)
  Carbon Manganese Phosphorus Sulfur Carbon + Manganese
SD 30 0.27 - 0.05 0.05 0.05
SD 40 - 1.8 0.05 0.05 0.05
SD 50 - 1.8 0.05 0.05 0.05
